Mini UV Laser Marking Machine & Laser Engraving Machine – Compact 3W Engraver for Small Businesses

The Mini UV Laser Marking Machine is a compact and efficient solution for businesses that need to mark or engrave small items made of plastic, glass, acrylic, ceramics, or other heat-sensitive materials. It uses ultraviolet (UV) laser technology to create detailed, permanent marks without damaging the surface of the material.

Unlike traditional laser systems that generate heat, the UV laser works with a much shorter wavelength (355 nm), which allows it to mark materials through a process called “cold marking.” This means there is little to no heat effect during marking, which is important when working with soft plastics or fragile surfaces like glass.

The mini UV model is designed for environments where space is limited or where only a small number of parts need to be marked at a time. It's commonly used in small manufacturing facilities, workshops, laboratories, and studios that work with electronics, packaging, cosmetics, and promotional items.

What It’s Commonly Used For

This type of machine is ideal for:

• Marking logos, barcodes, or serial numbers on small plastic parts (like connectors, cables, or phone chargers)

• Engraving expiration dates or batch codes on plastic or glass packaging in the cosmetics, food, or pharmaceutical industries

• Adding permanent identification to medical tools, vials, or caps

• Creating detailed designs or text on glass items, such as souvenirs, awards, or lab glassware

• Engraving on acrylic gifts, keychains, or custom promotional items

Because the laser doesn't cause heat damage, it is well suited for marking materials that are difficult or impossible to process with other types of lasers (such as fiber lasers or CO₂ lasers).

How It Works

This machine uses a UV laser beam that is focused onto the surface of the object. The light energy breaks down chemical bonds on the surface, changing the material's appearance without burning or melting it. The result is a high-contrast, precise mark that doesn't rub off or fade over time. No ink or labels are used, so there’s no waste or ongoing consumable costs.

Most mini UV laser machines come with easy-to-use design software that allows you to create or import your marking content (logos, numbers, barcodes, etc.). The machine is usually controlled from a computer and can be adjusted to mark on flat or slightly curved surfaces.

Examples

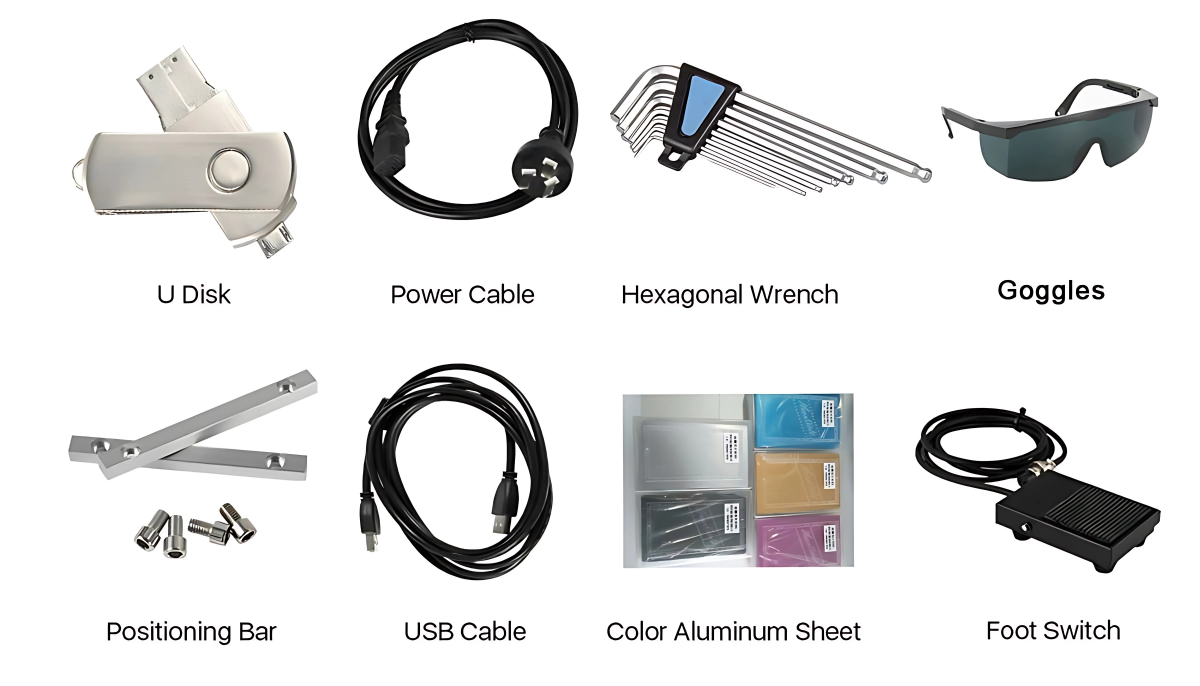

Accessories

Technical Specifications

01. UV Laser Source

Equipped with a Hispeed brand laser source (Coherent), offering a lifespan of up to 30,000 hours. Designed for continuous 24/7 operation.

02. Field Lens

Our compact Fθ field lens features an air-spaced design with anti-reflective coating, ensuring excellent light transmission, durability, and less than 1% distortion.

03. Control System

Integrated with a high-quality Beijing JCZ control board and EZCAD software, offering stable performance and high reliability. The system is delivered with a pre-installed computer, including all necessary software and parameters.

04. Galvanometric System

The advanced Galvo-Tech digital galvanometric system enables high-speed laser marking with minimal delay, increasing overall engraving efficiency.

05. UV Engraving Machine Body

The machine features a sealed cabinet design with built-in control system, USB connectivity, and wheels for mobility—easily moved to any production line or workstation.

06. Operation Software

Includes EzCad2 software, compatible with Windows XP, 7, 8, and 10. Offers stable, professional engraving performance and supports file formats from AutoCAD, CorelDraw, Adobe Illustrator, Photoshop, and more. Intuitive and easy to operate.
