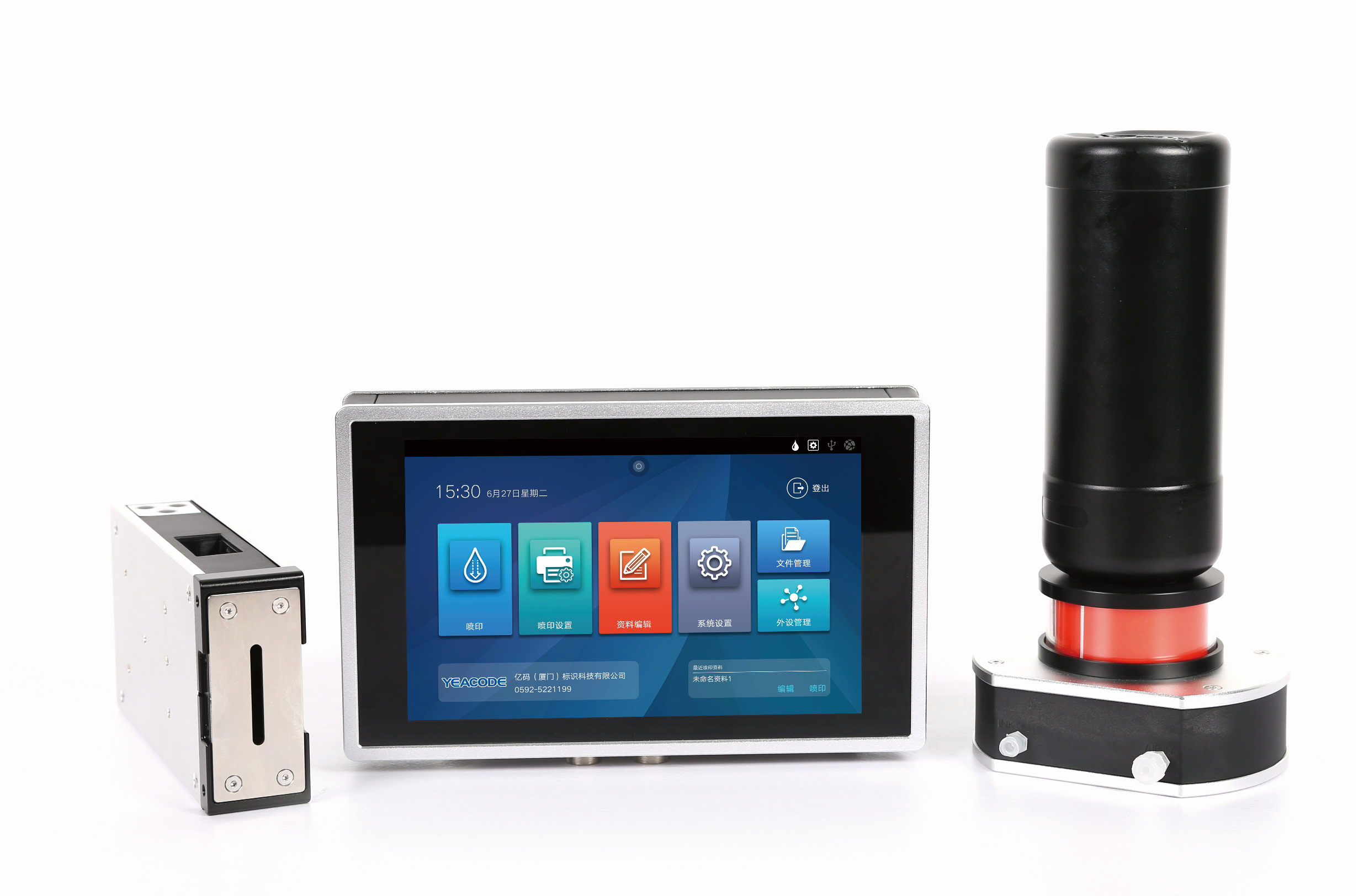

81 Series Inkjet Printer

 Yeacode 81 Series Inkjet Printer prints up to 32.4mm height high quality contents downward/sideward in high speed production lines, also supports water based, oil based, solvent and UV ink to print on both porous and non-porous substrates.

inkjet_printer

  Friendly User Interface

8-inch capacitive color touchscreen, Android based interface, easy access to core functions, support various language and input methods.

Friendly_interface

  Variable Data Printing

Support a wide range of variable data: linear barcode, matrix barcode, date & time, shifts, counter, image, database, table.Printer_Yeacode

data_printing

  Continuous Ink Supply System

Centralized continuous ink supply and management, minimize production line down time and ink cost. Encrypted ink cartridge ensures consistent printing quality.

Ink_system

  Multiple Software/Hardware Interface

Provide software development kits, and support various hardware interfaces (PLC, RS232, RS485, Ethernet) to fulfill various integration needs.inkjet_printer_software

Softeare_injekt_printer

  Meet Customized Needs

Open platform and advanced software system structure enable quick response to customized printing needs through plug-ins and updates.Inkjet_printers

Yeacode_printer

81 Series Inkjet Printer -  Specifications

Technology Piezoelectric Printing
Print Speed 0-150 mpm
Throw Distance <5mm
Resolution 300dpi
Print Height 0.5-32.4mm
Ports USB*2, 12pin I/O_1 (PLC, RS485, Alarm Light), 7pin I/O_2 (Encoder, Photocell, RS232), Ethernet.
Ink Supply Continuous Ink Supply System(CISS), with built-in alarm lights.
Display 8- inch industrial capacitive color touchscreen, resolution 1280*800
Power 110-240V In, 24V 5A Out
Print Orientation Sideward / Downward;
Ink Water-based, Solvent, Oil-based, UV ink;
Ink Management Auto read ink type and info, auto track ink usage.
Working Temperature 59°F (15°C)~104°F (40°C)
Storage Temperature 41° F (5°C)~113°F (45°C)
Hardware Dimensions Controller: 222*143*38mm
Printhead: 172*87*38mm
CISS: 120*103*70mm
Certifications CE, FCC

Inkjet Printer Features

Operating System Android(Controller), Windows(PC)
Language English(Default), Chinese, and more
Fonts DroidSansFallback, Arial, and more
Input Methods Support various Android input methods
Print Content Static & Dynamic Variables:
Text, Date&Time, Shift, Counter, Database, Image, Shape
Barcode Types Linear Barcodes: C25INTER, Code128, CODE39, EANX, CODE128, EAN13, UPCA,
UPCE, EAN128, INT25, ITF14, RSS14, RSS14STACK, RSS14STACK_OMNI, RSS_LTD, RSS_EXP, RSS_EXPSTACK, CODE93;
Matrix Barcodes: PDF417, DataMatrix, QRCODE, GridMatrix;
Print Modes Standard, Continuous, Back & Forth
Supported Database Text, Excel, Access, SQL Server



84 Series Inkjet Printer

 Yeacode 84 Series Inkjet Printer allows free combination and grouping of up to 4 printheads with a single controller, and prints up to 128mm height high quality contents downward/sideward in high speed production lines, also supports water based, oil based, solvent and UV ink to print on both porous and non-porous substrates.
Inkjet_Printer Inkjet_Printer

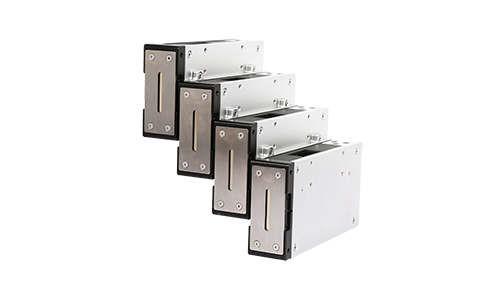

 Combination & Grouping

Modular printhead design enables free combination and grouping of up to 4 printheads.

Inkjet_Printer

Inkjet_Printer_interface

 Friendly User Interface

8-inch capacitive color touchscreen, Android based interface, easy access to core functions, support various language and input methods.


  Variable Data Printing

Support a wide range of variable data: linear barcode, matrix barcode, date & time, shifts, counter, image, database, table.Inkjet_Printer_data

Inkjet_Printer_data

 Continuous Ink Supply System

Centralized continuous ink supply and management, minimize production line down time and ink cost. Encrypted ink cartridge ensures consistent printing quality.

Ink_Supply_System

 Multiple Software/Hardware Interface

Provide software development kits, and support various hardware interfaces (PLC, RS232, RS485, Ethernet) to fulfill various integration needs.Hardware_Interface

Multiple_Software



Yeacode_inkjet_printer

 Meet Customized Needs

Open platform and advanced software system structure enable quick response to customized printing needs through plug-ins and updates.

Yeacode_printer


 Specifications
Technology Piezoelectric Printing
Print Speed 0-150 mpm
Throw Distance <5mm
Resolution 300dpi
Print Height 0.5-128mm
Ports USB*2, 12pin I/O_1 (PLC, RS485, Alarm Light), 7pin I/O_2 (Encoder, Photocell, RS232), Ethernet.
Ink Supply Continuous Ink Supply System(CISS), with built-in alarm lights.
Display 8-inch industrial capacitive color touchscreen, resolution 1280*800
Power 110-240V In, 24V 5A Out
Print Orientation Sideward/Downward;
Ink Water-based, Oil-based, Solvent, UV ink;
Ink Management Auto read ink type and info, auto track ink usage.
Working Temperature 59°F (15°C) -104°F (40°C)
Storage Temperature 41° F (5°C) -113°F (45°C)
Hardware Dimensions Controller: 222*143*38mm
Printhead: 172*87*38mm
CISS: 120*103*70mm
Certifications CE、FCC

Features

Operating System Android(Controller), Windows(PC)
Language English(Default), Chinese, and more
Fonts DroidSansFallback, Arial, and more
Input Methods Support various Android input methods
Print Content Static & Dynamic Variables:
Text, Date&Time, Shift, Counter, Database, Image, Shape
Barcode Types Linear Barcodes: C25INTER、Code128、CODE39、EANX、CODE128、EAN13、UPCA、
UPCE、EAN128、INT25、ITF14、RSS14、RSS14STACK、RSS14STACK_OMNI、RSS_LTD、
RSS_EXP、RSS_EXPSTACK、CODE93;
Matrix Barcodes: PDF417、DataMatrix、QRCODE、GridMatrix;
Print Modes Standard, Continuous, Back & Forth
Supported Database Text, Excel, Access, SQL Sever

Video


Continuous Ink Supply System(CISS)

 Systemized ink supply for multiple printheads and centralized ink usage tracking and management minimize ink and maintenance cost.

  Systemized Ink Supply

Continuously supply ink for multiple printheads from single ink bottle with built-in alarm system.

Continuous_Ink_Supply_System
Continuous_Ink_Supply_System

  Centralized Ink Usage Management

Manage multiple encrypted ink cartridge usage all together to minimize production line downtime.

  Minimized Ink and Maintenance Cost

Minimize ink cost through supplying from single ink bottle; and provide simple maintenance experience with various quick connector design.

Continuous_Ink_Supply_System



UV Curing System

 UV Curing System together with UV ink allows coding on a wide range of non-porous substrates. Our one-to-one pairing of UV LED illuminating head and printer printhead minimizes maintenance and equipment cost. Cascadable UV controller provides scalability of curing area.


  921 Series

● Curing Area: 25*36mm
● Wave Length: 395nm
● Peak Irradiance: 12W/cm²
● Centralized control by printer systems
● Modular design, easy maintenance

 Continuous_Ink_Supply_System

Continuous_Ink_Supply_System

  924 Series

● Curing Area: 25*36mm per head
● Wave Length: 395nm
● Peak Irradiance: 12W/cm²
● Maximum 4 heads per cascadable controller
● Centralized control by printer systems
● Modular design, easy maintenance
