Standard model KD74 series
INQUIRYX-ray Inspection System
Standard model KD74 series

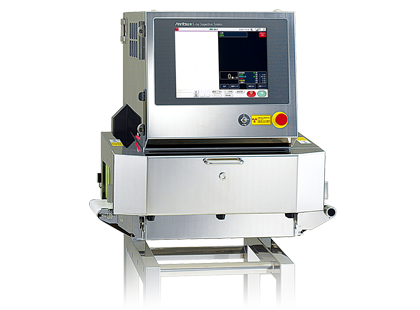

Highly versatile system with a proven track record suites a wide range of packaged products. Simultaneous inspection including shape analysis, missing item and package integrity inspection are available.
[Example model] Maximum width: 240 mm, Maximum height: 120 mm (KD7405AWH)
■External Dimensions
■Specifications
1: Actual sensitivity depends on the physical properties of products (contents and shape) and on the environmental conditions. 2: The entrance and exit may require covers depending on the length of a product. 3: Variable depending on Product No. 4: Sum total of product weight on the conveyor. 5: Selectable by switching terminals. Note that the rush current shown above is at an AC voltage of 200 V. It varies according to voltage. 6: Allowable power fluctuation range is ± 10%. 7: Installing the air-conditioner option changes the displayed power consumption. 8: The air-conditioner option may be required depending on the operating environment. Note: The noise level of x-ray inspection systems is 77 dB(A).
|
Model
|
KD7405AWH
|
|
Detection sensitivity 1
|
Fe sphere and SUS sphere 0.3 mm dia., SUS wire 0.2 mm dia.× 2 mm long
|
|
X-ray output
|
Tube voltage 25 to 60 kV, tube current 0.3 to 7.0 mA, output 7.5 to 210 W
|
|
Safety
|
X-ray leakage maximum 1μSv/h or less, prevention of x-ray leakage by safety devices
|
|
Display
|
15-inch color TFT LCD (unified image monitoring screen and operation screen)
|
|
Operation method
|
Touch panel (with touch buzzer)
|
|
Product size 2
|
Maximum width 240 mm, maximum height 120 mm (see drawing for detection area)
|
|
Belt width
|
270 mm
|
|
Masking function
|
Equipped as standard
|
|
Missing product detection function
|
Equipped as standard
|
|
Clip check function
|
Equipped as standard
|
|
Preset memory
|
Maximum 100
|
|
Belt speed 3 /
Maximum product weight 4 |
5 to 60 m/min, maximum 5 kg
|
|
61 to 90 m/min, maximum 2 kg
|
|
|
5 to 40 m/min, maximum 10 kg (optional)
|
|
|
Power requirements 5, 6, 7
|
100 to 120 or 200 to 240 Vac, single phase, 50/60 Hz, 1.0 kVA, rush current 80 A (typ.) (5 ms or less)
|
|
Mass
|
210 kg
|
|
Environmental conditions 8
|
Temperature: 0º to 35ºC (0º to 40ºC with optional air conditioner), relative humidity: 30% to 85%, non-condensing
|
|
Protection class
|
Conveyor IP66, other parts IP40, tool free belt removal
|
|
Exterior
|
Stainless steel (SUS304)
|
Detection Areas
A variety of models is available for a wide range of products. For details of detection areas, please submit an online inquiry form.
|
Model
|
Detection area
|
|
KD7405AWH/ADWH
KD7405BWH/BDWH |
 For Packaged Products |
|
KD7416AWH/ADWH
KD7416BWH/BDWH |
 For Packaged Products |
|
KD7417BWH
|
 For Packaged Products |
|
KD7405ABWH
KD7416ABWH※ |
of Unpacked Fresh Food |
|
KD7405ACWH
KD7416ACWH※ |
and Those in Small Bags |
