Checkweigher

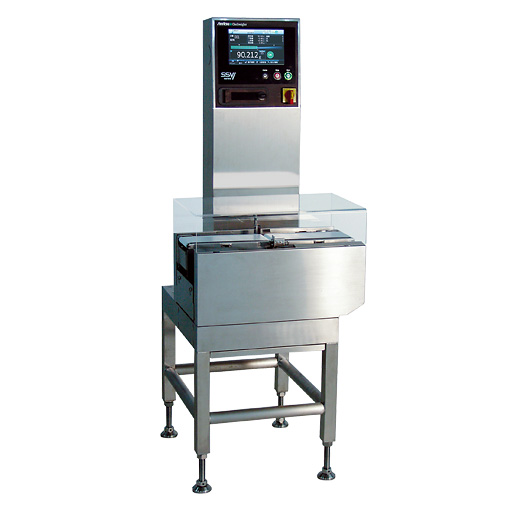

High Accuracy Model: SSV-h series
Equipped with a high speed/high accuracy force balance load cell. Meets stringent accuracy and reliability standards in industrial and pharmaceutical products.
High Accuracy Model: SSV-h series
Equipped with a high speed/high accuracy force balance load cell. Meets stringent accuracy and reliability standards in industrial and pharmaceutical products.
High Accuracy Model: SSV-h series
- Maximum speed: 600 products/min
- Maximum accuracy: ±0.01 g
|
Control panel exterior
|
 Stainless steel |
Painted |
|
Conveyor
|
 Waterpoof |
Non waterproof |
|
Balance
|
Force balance |
 Strain gauge |
|
Frame
|
Stainless steel |
Painted |
Example model : KWS6206BP06

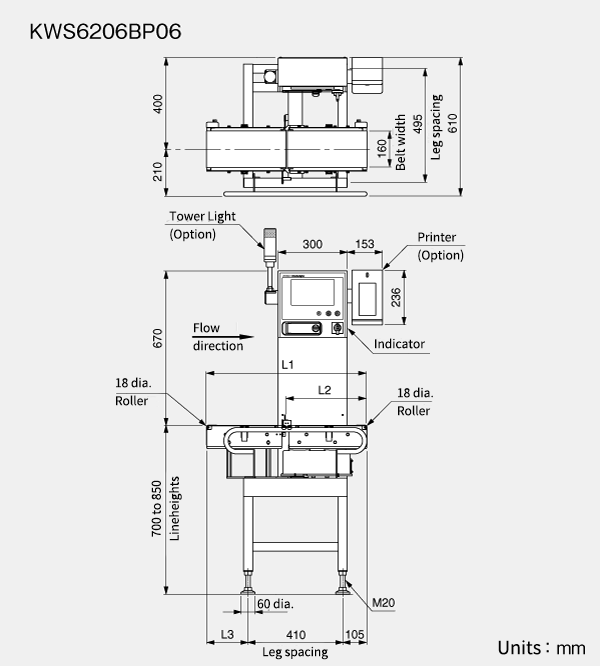

■External dimensions
■Specifications
1: The speed and accuracy vary according to the products to be weighed and the rejector.
2: The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products.
Note: The noise level of the checkweighers does not exceed 70 dB (A).
|
Model
|
KWS6206BP06
|
|
|
Weighing range
|
1.2 to 600 g
|
|
|
Scale interval
|
0.01 g
|
|
|
Maximum speed1
|
320 products/min
|
|
|
Maximum accuracy （3σ）1
|
+/- 0.015 g
|
|
|
Display
|
8.5-inch color TFT LCD
|
|
|
Operation method
|
Touch panel (Start, Stop, and Home are direct push buttons)
|
|
|
Indication range
|
600.9 g
|
|
|
Preset memory
|
Maximum 200
|
|
|
Classification
|
2 or 3
|
|
|
Product
size 2 |
Width W
|
20 to 160 mm
|
|
Length L
|
46 to 320 mm
|
|
|
Height H
|
5 to 320 mm
|
|
|
Belt speed
|
15 to 120 m/min
|
|
|
Power requirements
|
100 to 120 Vac +10% –15% or 200 to 240 Vac +10% –15%, single phase, 50/60 Hz, 200 VA, rush current 30 A (typ.) (20 ms or less)
|
|
|
Mass
|
60 kg
|
|
|
Environmental conditions
|
0° to 40°C (variation not to exceed 5°C/h to maintain accuracy), relative humidity 30% to 85%, non-condensing
|
|
|
Protection class
|
IP30 compliance
|
|
|
Exterior
|
Stainless steel (SUS304) (excluding some parts)
|
|
|
Data output
|
USB port (USB2.0), Ethernet interface (10BASE-T, 100BASE-TX)
|
|
2: The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products.
Note: The noise level of the checkweighers does not exceed 70 dB (A).
Model Selection List
The SSV series is available in a variety of models to suit a wide range of products. For details of detection areas, please submit an online inquiry form.
〈High Accuracy model〉SSV-h series
The speed and accuracy vary according to the products to be weighed and the rejector.
△: The alphabet letter indicating the exterior type
〈High Accuracy model〉SSV-h series
| Model | Weighing range （g） |
Maximum accuracy（g） |
Maximum speed （products/min） |
Belt speed （m/min） |
Product size | ||
| Width （mm） |
Length （mm） |
Height （mm） |
|||||
| KWS6001B△04 | 0.4 to 100 | +/- 0.01 | 600 | 15 to 99 | 20 to 100 | 46 to 120 | 5 to 120 |
| KWS6003B△03 | 0.4 to 100 | +/- 0.01 | 310 | 15 to 92 | 20 to 100 | 46 to 230 | 5 to 230 |
| KWS6005B△05 | 0.4 to 100 | +/- 0.01 | 310 | 15 to 92 | 20 to 160 | 46 to 230 | 5 to 230 |
| KWS6006B△06 | 0.4 to 100 | +/- 0.01 | 320 | 15 to 120 | 20 to 160 | 46 to 320 | 5 to 320 |
| KWS6201B△04 | 1.2 to 600 | +/- 0.015 | 600 | 15 to 99 | 20 to 160 | 46 to 120 | 5 to 120 |
| KWS6203B△03 | 1.2 to 600 | +/- 0.015 | 400 | 15 to 120 | 20 to 100 | 46 to 230 | 5 to 230 |
| KWS6205B△05 | 1.2 to 600 | +/- 0.015 | 400 | 15 to 120 | 20 to 160 | 46 to 230 | 5 to 230 |
| KWS6206B△06 | 1.2 to 600 | +/- 0.015 | 320 | 15 to 120 | 20 to 160 | 46 to 320 | 5 to 320 |
| KWS6411B△11 | 6 to 3000 | +/- 0.1 | 400 | 15 to 120 | 20 to 250 | 60 to 230 | 5 to 230 |
| KWS6412B△12 | 6 to 3000 | +/- 0.1 | 320 | 15 to 120 | 20 to 250 | 60 to 320 | 5 to 320 |
| KWS6414B△12 | 6 to 3000 | +/- 0.1 | 220 | 15 to 120 | 20 to 250 | 60 to 450 | 5 to 450 |
| KWS6416B△16 | 6 to 3000 | +/- 0.1 | 270 | 15 to 120 | 20 to 350 | 60 to 350 | 5 to 350 |
| KWS6417B△17 | 6 to 3000 | +/- 0.1 | 220 | 15 to 120 | 20 to 350 | 60 to 450 | 5 to 450 |
△: The alphabet letter indicating the exterior type
